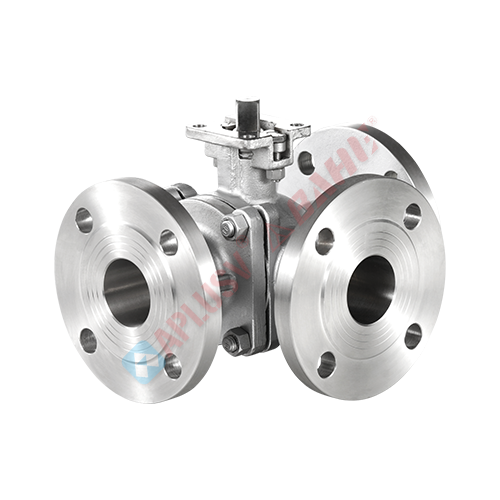

Our three-way reversing ball valve features tight closure, compact structure, light weight, and convenient maintenance. It is widely used in the pipeline automation control of corrosive media such as gases, liquids, steam, and oils. The two-seat sealed three-way ball valve can switch the flow direction of the medium in the pipeline. It can also connect or close the two perpendicular channels. The four-seat sealed three-way ball valve not only can switch the flow direction of the medium, but also can connect the three channels, and can close any one channel while allowing the other two channels to be connected, enabling flexible control of the flow convergence or diversion of the medium in the pipeline.
● Fireproof and anti-static design
● Valve stem explosion prevention device
● Pressure balance holes are designed on the valve ball.
● Casting high platform structure
● Easy to install and maintain
● Double-layer valve stem packing and pressure relief disc spring device
● The electric/ pneumatic actuators can be configured arbitrarily
● Pipe diameter range: DN15 to DN250 (1/2" to 10")
● Pressure range: PN1.6 to 10.0 MPa (Customization is available for pressures above 10.0 MPa)
● Temperature range: -29℃ to +450℃ (Customization available for extremely high temperatures)
● Material options: carbon steel, stainless steel, chromium-molybdenum steel, alloy steel
● Sealing material: PTFE, PPL (customizable metal sealing)
● Connection method: Flange, Thread (applicable for 3" diameter or smaller)
● Driving methods: pneumatic actuator, electric actuator, worm gear, handle
● Control mode: Switching ON/OFF type, adjustable type with 4-20mA or 1-5V output.
● Other configurations: Contact the BAHE business personnel or the technical department to obtain more technical specifications or option information about this product.
